Election Data Dashboard Pt. 1: Collection and Cleaning

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import plotly.graph_objects as go
import plotly.express as px
import json

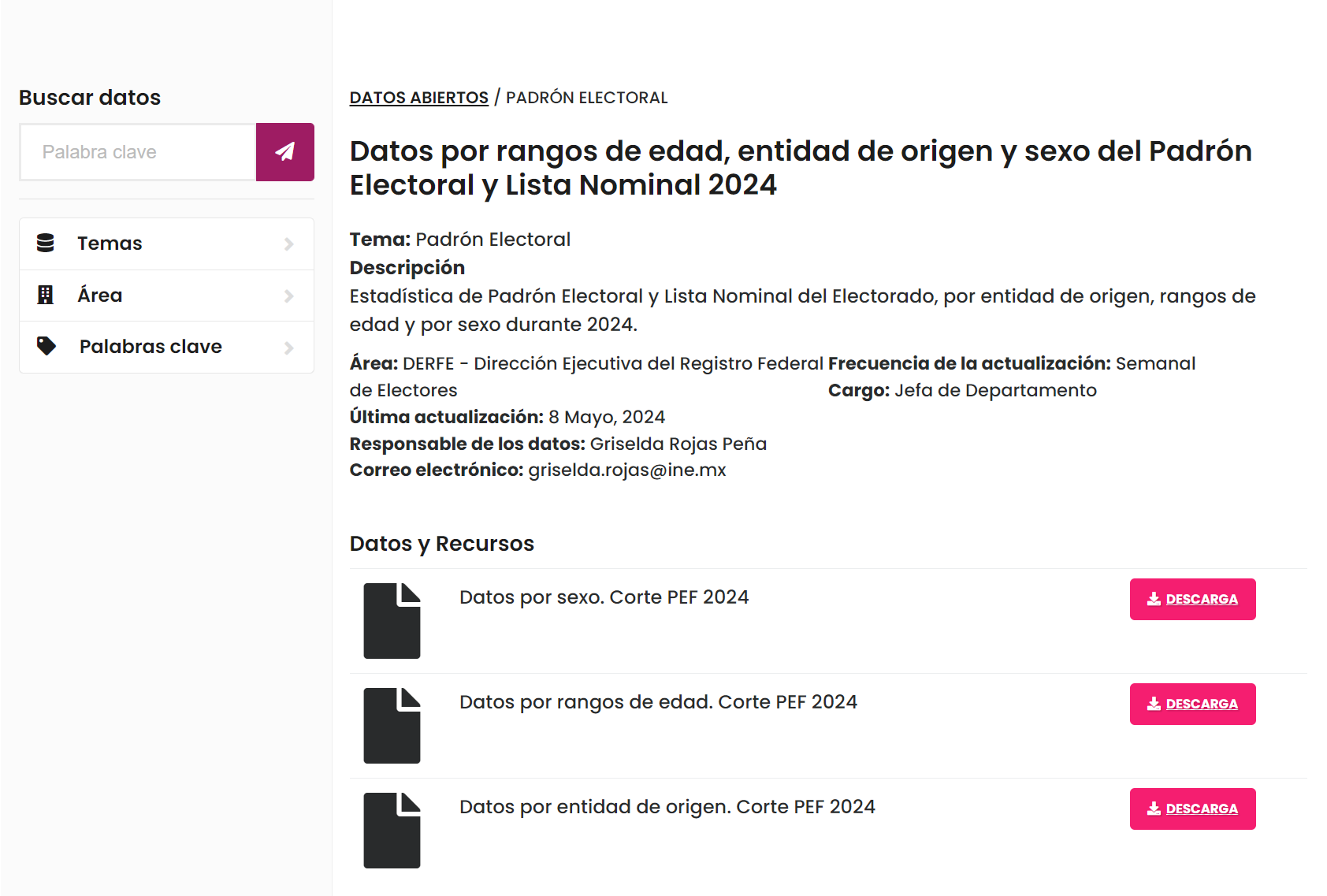

df_sx = pd.read_excel('data/padron_y_ln_sexo.xlsx')
print(len(df_sx.columns))
df_sx.head()

# change column names
col_names_sx = ['Clave Entidad', 'Nombre Entidad', 'Clave Distrito', 'Nombre Distrito',
             'Clave Municipio', 'Nombre Municipio', 'Seccion', 'Padron Hombre',
             'Padron Mujeres', 'Padron No Binario', 'Padron Electoral', 'Lista Hombres',
             'Lista Mujeres', 'Lista No Binario', 'Lista Nominal']
df_sx.columns = col_names_sx

df_sx.head()

print(df_sx.dtypes)
print(df_sx.isnull().sum())

# filter rows by state quintana roo
df_sx_qroo = df_sx[df_sx['Nombre Entidad'] == 'QUINTANA ROO']

# select columns for padron electoral
df_pe_sx_qroo = df_sx_qroo.iloc[:,:11]

# select columns for lista nominal
cols_to_drop = df_sx_qroo.columns[7:11]
df_ln_sx_qroo = df_sx_qroo.drop(columns = cols_to_drop)
df_ln_sx_qroo.head()

# load the files
df_re_2009 = pd.read_csv('data/DIPUTACIONES_FED_MR_2009/2009_SEE_DIP_FED_MR_NAL_SEC.csv')
df_re_2012 = pd.read_csv('data/DIPUTACIONES_FED_MR_2012/2012_SEE_DIP_FED_MR_NAL_SEC.csv')
df_re_2015 = pd.read_csv('data/DIPUTACIONES_FED_MR_2015/2015_SEE_DIP_FED_MR_NAL_SEC.csv')
df_re_2018 = pd.read_csv('data/DIPUTACIONES_FED_MR_2018/2018_SEE_DIP_FED_MR_NAL_SEC.csv')
df_re_2021 = pd.read_csv('data/DIPUTACIONES_FED_MR_2021/2021_SEE_DIP_FED_MR_NAL_SEC.csv')

# filter rows by state quintana roo
df_re_2009_qroo = df_re_2009[df_re_2009['NOMBRE_ESTADO'] == 'QUINTANA ROO']
df_re_2012_qroo = df_re_2012[df_re_2012['NOMBRE_ESTADO'] == 'QUINTANA ROO']
df_re_2015_qroo = df_re_2015[df_re_2015['NOMBRE_ESTADO'] == 'QUINTANA ROO']
df_re_2018_qroo = df_re_2018[df_re_2018['NOMBRE_ESTADO'] == 'QUINTANA ROO']
df_re_2021_qroo = df_re_2021[df_re_2021['NOMBRE_ESTADO'] == 'QUINTANA ROO']


df_re_2021_qroo.head()

# define a list of all the dataframes to loop over them below
df_re_all_years = [df_re_2009_qroo, df_re_2012_qroo, df_re_2015_qroo, df_re_2018_qroo, df_re_2021_qroo]

# drop independent candidates and any rows with NaN in the MUNICIPIO columns
for df in df_re_all_years:
    # drop rows where 'MUNICIPIO' is NaN
    df.dropna(subset=['MUNICIPIO'], inplace = True)

    # select columns that begin with "CAND"
    cols_cand_ind = df.columns[df.columns.str.startswith('CAND')]

    # drop the identified columns
    df.drop(columns=cols_cand_ind, inplace = True)

df_re_all_years[-1].head()

# List to store party names lists for each DataFrame
party_names_per_df = []

for df in df_re_all_years:
    party_names = []  # Empty list to store party names for current DataFrame

    # Get a list of column names
    column_names = list(df.columns)

    try:
        # Find the indices of "CASILLAS" and "NUM_VOTOS_CAN_NREG" (handle potential errors)
        casillas_index = column_names.index('CASILLAS')
        num_votos_index = column_names.index('NUM_VOTOS_CAN_NREG')

        # Extract party names between the indices (avoid out-of-bounds)
        party_names = column_names[casillas_index + 1:min(num_votos_index, len(column_names))]

    except ValueError:
        # Handle cases where "CASILLAS" or "NUM_VOTOS_CAN_NREG" might not exist
        print(f"\nWARNING: 'CASILLAS' or 'NUM_VOTOS_CAN_NREG' not found in DataFrame")

    # Append the party names list for this DataFrame
    party_names_per_df.append(party_names)

party_names_per_df

print('Number of lines in the 2009 election dataframe: ', len(df_re_2009_qroo) )
print('Number of lines in the 2012 election dataframe: ', len(df_re_2012_qroo) )
print('Number of lines in the 2015 election dataframe: ', len(df_re_2015_qroo) )
print('Number of lines in the 2018 election dataframe: ', len(df_re_2018_qroo) )
print('Number of lines in the 2021 election dataframe: ', len(df_re_2021_qroo) )

# write a dictionary with the alliances per party
alliance_mapping = {
    'PAN': ['PAN', 'PAN_NVA_ALIANZA', 'PAN_PRD'],
    'PRI': ['PRI', 'PRI_PVEM', 'PRI_NA', 'PRI_PVEM_NA', 'PAN_PRI_PRD', 'PAN_PRI', 'PRI_PRD'],
    'PRD': ['PRD', 'PRD_PT', 'PAN_PRI_PRD'],
    'PVEM': ['PVEM', 'PVEM_NA', 'PVEM_PT'],
    'PT': ['PT', 'PT_ES'],
    'MC': ['MC', 'PRD_PT_MC', 'PRD_MC', 'PT_MC', 'PAN_PRD_MC', 'PAN_MC'],
    'MORENA': ['MORENA', 'PT_MORENA_ES', 'PT_MORENA', 'MORENA_ES', 'PVEM_PT_MORENA', 'PVEM_MORENA'],
    'NVA_ALIANZA': ['NVA_ALIANZA'],
    'PSD': ['PSD'],
    'PRIMERO_MEXICO': ['PRIMERO_MEXICO'],
    'SALVEMOS_MEXICO': ['SALVEMOS_MEXICO'],
    'PH': ['PH'],
    'ES': ['ES'],
    'NA': ['NA'],
    'PES': ['PES'],
    'RSP': ['RSP'],
    'FXM': ['FXM'],
}

main_parties = {
    'PAN': 'PAN',
    'PRI': 'PRI',
    'PRD': 'PRD',
    'PVEM': 'PVEM',
    'PT': 'PT',
    'MC': 'MC',
    'MORENA': 'MORENA',
    'NVA_ALIANZA': 'NVA_ALIANZA',
    'PSD': ['PSD'],
    'PRIMERO_MEXICO': ['PRIMERO_MEXICO'],
    'SALVEMOS_MEXICO': ['SALVEMOS_MEXICO'],
    'PH': ['PH'],
    'ES': ['ES'],
    'NA': ['NA'],
    'PES': ['PES'],
    'RSP': ['RSP'],
    'FXM': ['FXM'],
    # Add more as needed for each unique party or alliance...
}

df_re_2018_qroo.head()

alliance_votes_mapping = {
    'PAN_NVA_ALIANZA': ['PAN', 'NVA_ALIANZA'],
    'PAN_PRD': ['PAN', 'PRD'],
    'PRI_PVEM': ['PRI', 'PVEM'],
    'PRI_NA': ['PRI', 'NA'],
    'PRI_PVEM_NA': ['PRI', 'PVEM', 'NA'],
    'PAN_PRI_PRD': ['PAN', 'PRI', 'PRD'],
    'PAN_PRI': ['PAN', 'PRI'],
    'PRI_PRD': ['PRI', 'PRD'],
    'PRD_PT': ['PRD', 'PT'],
    'PVEM_NA': ['PVEM', 'NA'],
    'PVEM_PT': ['PVEM', 'PT'],
    'PT_ES': ['PT', 'ES'],
    'PRD_PT_MC': ['PRD', 'PT', 'MC'],
    'PRD_MC': ['PRD', 'MC'],
    'PT_MC': ['PT', 'MC'],
    'PAN_PRD_MC': ['PAN', 'PRD', 'MC'],
    'PAN_MC': ['PAN', 'MC'],
    'MORENA_ES': ['MORENA', 'ES'],
    'PT_MORENA_ES': ['PT', 'MORENA', 'ES'],
    'PT_MORENA': ['PT', 'MORENA'],
    'PVEM_PT_MORENA': ['PVEM', 'PT', 'MORENA'],
    'PVEM_MORENA': ['PVEM', 'MORENA'],
}

def distribute_alliance_votes(df, alliances):
    # ensure that party columns exist in the dataframe, add them if the do not
    all_parties = set(party for parties in alliances.values() for party in parties)
    for party in all_parties:
        if party not in df.columns:
            df[party] = 0

    # distribute the votes from each alliance to the respective parties
    for alliance, parties in alliances.items():
        if alliance in df.columns:
            split_votes = df[alliance] / len(parties)
            for party in parties:
                df[party] += split_votes

    # optionally remove the alliance columns
    df.drop(columns = list(alliances.keys()), inplace = True, errors = 'ignore')

    return df

# apply the vote split function to all the dataframes:

df_re_2009_qroo = distribute_alliance_votes(df_re_2009_qroo, alliance_votes_mapping)
df_re_2012_qroo = distribute_alliance_votes(df_re_2012_qroo, alliance_votes_mapping)
df_re_2015_qroo = distribute_alliance_votes(df_re_2015_qroo, alliance_votes_mapping)
df_re_2018_qroo = distribute_alliance_votes(df_re_2018_qroo, alliance_votes_mapping)
df_re_2021_qroo = distribute_alliance_votes(df_re_2021_qroo, alliance_votes_mapping)


df_re_2018_qroo.head()

# list to store party names lists for each DataFrame
party_names_per_df = []

for df in df_re_all_years:
    party_names = []  # empty list to store party names for current DataFrame

    # get a list of column names
    column_names = list(df.columns)

    try:
        # find the indices of "CASILLAS" and "NUM_VOTOS_CAN_NREG" (handle potential errors)
        casillas_index = column_names.index('CASILLAS')
        num_votos_index = column_names.index('NUM_VOTOS_CAN_NREG')

        # extract party names between the indices (avoid out-of-bounds)
        party_names = column_names[casillas_index + 1:min(num_votos_index, len(column_names))]

    except ValueError:
        # handle cases where "CASILLAS" or "NUM_VOTOS_CAN_NREG" might not exist
        print(f"\nWARNING: 'CASILLAS' or 'NUM_VOTOS_CAN_NREG' not found in DataFrame")

    # append the party names list for this DataFrame
    party_names_per_df.append(party_names)

party_names_per_df

# function for plotting the time history, given a eyar, and a municipality
def plot_aggregated_votes_by_main_party_px(df_list, main_parties, selected_municipality, election_years):
    """
    Plots an interactive line plot with filled areas to zero for each main party and its alliances,
    in a selected municipality across elections using Plotly Express. This approximates the non-stacked
    area plot behavior of the original function.
    """
    # initialize dictionary to hold vote totals for main parties
    votes_by_main_party = {main_party: [0] * len(election_years) for main_party in main_parties}

    # loop through each DataFrame and year
    for i, (df, year) in enumerate(zip(df_list, election_years)):
        # filter the DataFrame for the selected municipality
        if selected_municipality in df['MUNICIPIO'].values:
            filtered_df = df[df['MUNICIPIO'] == selected_municipality]

            # loop through each main party and its alliances
            for party in main_parties:
                # aggregate votes for each party in the alliance, adding to the main party's total
                if party in filtered_df.columns:
                    votes_by_main_party[party][i] += filtered_df[party].sum()

    # prepare the data for plotting
    data_for_plotting = []
    for main_party, votes in votes_by_main_party.items():
        for year, vote in zip(election_years, votes):
            data_for_plotting.append({'Election Year': year, 'Total Votes': vote, 'Party': main_party})
    df_plot = pd.DataFrame(data_for_plotting)

    # create the plot
    fig = px.line(df_plot, x='Election Year', y='Total Votes', color='Party',
                  line_shape='linear', title=f'Total Votes per Party (Including Alliances), in {selected_municipality}')

    # customize the layout
    fig.update_traces(mode='lines', line=dict(width=2.5), fill='tozeroy')
    fig.update_layout(xaxis_title='Election Year',
                      yaxis_title='Total Votes',
                      legend_title='Party',
                      font=dict(family="Arial, sans-serif", size=12, color="#333"),
                      hovermode='x unified',
                      legend = dict(
                          orientation = 'h',
                          yanchor = 'bottom',
                          y = -0.6, # adjuist to fit layout
                          xanchor = 'center',
                          x = 0.5
                      ))

    return fig

municipality = 'BENITO JUAREZ'   # as an example
election_years = [year for year in range(2009, 2022, 3)]
plot_aggregated_votes_by_main_party_px(df_re_all_years, main_parties, municipality, election_years)

def plot_election_pie_chart(selected_year, selected_municipality, df_re_all_years, main_parties):

    # mapping years to their indices in the list of dataframes
    year_to_index = {2009: 0, 2012: 1, 2015:2, 2018: 3, 2021: 4}

    selected_year_index = year_to_index.get(selected_year)

    if selected_year_index is None:
        print(f"No data available for the year {selected_year}.")
        return

    # extract the dataframe for the selected year
    df_selected_year = df_re_all_years[selected_year_index]

    # filtering the df for the selected municipality
    df_municipality = df_selected_year[df_selected_year['MUNICIPIO'] == selected_municipality]
    if df_municipality.empty:
        print(f'No data available for {selected_municipality}.')
        return

    # aggregating votes for each main party
    votes_by_party = {main_party: 0 for main_party in main_parties}
    for party in main_parties:
        if party in df_municipality.columns:
            votes_by_party[party] += df_municipality[party].sum()

    # create the pie chart
    df_votes = pd.DataFrame(list(votes_by_party.items()), columns = ['Party', 'Votes'])
    fig = px.pie(df_votes, values = 'Votes', names = 'Party',
                 title = f'Vote Distribution in {selected_municipality}, {selected_year}')

    # Update the traces to remove the text labels
    fig.update_traces(textinfo='none', hoverinfo='label+percent')

    return fig

plot_election_pie_chart(2012, municipality, df_re_all_years, main_parties)

# define some colors for each party
party_colors = {
    'PAN': '#0052CC',        # Blue
    'PRI': '#013369',        # Dark Blue
    'PRD': '#FFD700',        # Gold
    'PVEM': '#00A550',       # Green
    'PT': '#E00000',         # Red
    'MC': '#FF7F00',         # Orange
    'MORENA': '#6813D5',     # Purple
    'NVA_ALIANZA': '#00AAAA', # Teal
    'PSD': '#555555',        # Dark Gray
    'PRIMERO_MEXICO': '#9C2AA0',  # Magenta
    'SALVEMOS_MEXICO': '#6CACE4', # Light Blue
    'PH': '#F0A3A3',         # Pink
    'ES': '#2AD2C9',         # Cyan
    'NA': '#F68B1F',         # Amber
    'PES': '#93C572',        # Lime
    'RSP': '#CC317C',        # Rose
    'FXM': '#8B4513',        # SaddleBrown
    # Add more entries for each party as needed...
}

# from aggregate df, we pull the latest one, and see the unique names for the column 'MUNICIPIO'
df_re_all_years[-1]['MUNICIPIO'].unique()

# Load the GeoJSON file
geojson_file_path = 'utils/mexico-geojson/2022/states/Quintana Roo.json'
with open(geojson_file_path, 'r', encoding='utf-8') as file:
    geojson_data = json.load(file)

# Extract "NOM_MUN" values
nom_mun_list = [feature['properties']['NOMGEO'] for feature in geojson_data['features']]

# Print the list to see what values are stored
print(nom_mun_list)

# Define a mapping of GeoJSON names to desired names, based on your DataFrame
# This is a manual step but only needs to be done once
name_mapping = {
    'Felipe Carrillo Puerto': 'FELIPE CARRILLO PUERTO',
    'Cozumel': 'COZUMEL',
    'Isla Mujeres': 'ISLA MUJERES',
    'Othón P. Blanco': 'OTHON P. BLANCO',
    'Solidaridad': 'SOLIDARIDAD',
    'Puerto Morelos': 'PUERTO MORELOS',
    'Benito Juárez': 'BENITO JUAREZ',
    'José María Morelos': 'JOSE MARIA MORELOS',
    'Lázaro Cárdenas': 'LAZARO CARDENAS',
    'Tulum': 'TULUM',
    'Bacalar': 'BACALAR'
}

# Iterate over each feature and adjust the names
for feature in geojson_data['features']:
    original_name = feature['properties']['NOMGEO']
    if original_name in name_mapping:
        feature['properties']['NOMGEO'] = name_mapping[original_name]

#------------------------------------------------------------------------------#
#--------------------- Save the modified GeoJSON to a new file ----------------#
#------------------------------------------------------------------------------#
# modified_geojson_file_path = 'qroo_geojson_2022.json'
# with open(modified_geojson_file_path, 'w', encoding='utf-8') as file:
#     json.dump(geojson_data, file, ensure_ascii=False, indent=4)

# create year mapping dictionary

# Mapping each election year to its corresponding dataframe
df_dict = {
    2009: df_re_2009_qroo,
    2012: df_re_2012_qroo,
    2015: df_re_2015_qroo,
    2018: df_re_2018_qroo,
    2021: df_re_2021_qroo,
}

# load the new geojson file here
election_years = [year for year in range(2009, 2022, 3)]
geojson_file_path = 'data/shapefiles/qroo_geojson_2022.json'
with open(geojson_file_path, 'r', encoding='utf-8') as file:
    geojson_data = json.load(file)

def create_winning_party_per_year_choropleth(selected_year, geojson, main_parties, df_dict):
    # This function now handles a single year's DataFrame and generates a choropleth map for that year.

    df_year = df_dict[selected_year]

    winning_party_by_municipality = {}

    for municipality in df_year['MUNICIPIO'].unique():
        votes_by_party = {main_party: 0 for main_party in main_parties}
        # for main_party, parties in alliance_mapping.items():
        #     for party in parties:
        #         if party in df_year.columns:
        #             votes_by_party[main_party] += df_year.loc[df_year['MUNICIPIO'] == municipality, party].sum()

        for party in main_parties:
            if party in df_year.columns:
                votes_by_party[party] += df_year.loc[df_year['MUNICIPIO'] == municipality, party].sum()


        winning_party = max(votes_by_party, key=votes_by_party.get)
        winning_party_by_municipality[municipality] = winning_party

    df_map = pd.DataFrame(list(winning_party_by_municipality.items()), columns=['MUNICIPIO', 'Partido Ganador'])
    df_map['Year'] = selected_year

    fig = px.choropleth(
        df_map,
        geojson=geojson,
        locations='MUNICIPIO',
        color='Partido Ganador',
        featureidkey="properties.NOMGEO",
        color_discrete_map=party_colors,
        projection="mercator",
    )
    fig.update_geos(fitbounds="locations", visible=False)
    fig.update_layout(title=f"Winning Party per Municipality, {selected_year}")

    return fig  # Return the figure for this specific year

# Example of how to call the function for a single year
year = 2021
df_year = df_dict[year]  # Assuming df_dict is defined with years as keys
fig = create_winning_party_per_year_choropleth(year, geojson_data, main_parties, df_dict)
fig.show()

print(df_ln_sx_qroo.columns)
df_ln_sx_qroo.head()

def create_gender_proportion_choropleth(df, geojson_data):
    # Aggregate data by MUNICIPIO if not already aggregated
    df_grouped = df.groupby('Nombre Municipio').sum().reset_index()

    # Calculate the percentage of women registered voters
    df_grouped['Porcentaje Mujeres'] = (df_grouped['Lista Mujeres'] / df_grouped['Lista Nominal']) * 100

    # Assuming `geojson` is your GeoJSON object for the municipalities
    fig = px.choropleth(
        df_grouped,
        geojson=geojson_data,
        locations='Nombre Municipio',
        color='Porcentaje Mujeres',
        featureidkey="properties.NOMGEO",
        color_continuous_scale=px.colors.sequential.Plasma,
        projection="mercator",
        title="Percentage of Women in Voter Registration"
    )

    fig.update_geos(fitbounds="locations", visible=False)

    # Update layout for colorbar position
    fig.update_layout(
    coloraxis_colorbar=dict(
        title='Women Percentage',
        orientation='h',
        x=0.5,
        xanchor='center',
        y=-0.2,
        thickness=10,  # Adjust the thickness of the colorbar
        len=0.65       # Set the length as a fraction of the plot area width
        )
    )
    return fig

create_gender_proportion_choropleth(df_ln_sx_qroo, geojson_data)

df_age = pd.read_excel('data/padron_y_ln_rango_edad.xlsx')
print(len(df_age.columns))
df_age.head()

df_age.columns

# Select columns by their positions: 1-7, 12-15, and the last 36
cols_to_keep = list(range(0, 7)) + list(range(11, 15)) + list(range(-36, 0))

# Now, select these columns from the DataFrame
df_ln_age = df_age.iloc[:, cols_to_keep]


# filter rows by state quintana roo
df_ln_age_qroo = df_ln_age[df_ln_age['NOMBRE\nENTIDAD'] == 'QUINTANA ROO']

# select columns for padron electoral
# df_ln_age_qroo = df_age_qroo.iloc[:,:11]
print(df_ln_age_qroo.columns)
df_ln_age_qroo.head()

df_ln_age_qroo.dtypes

ln_age_col_names = ['CLAVE ENTIDAD', 'NOMBRE ENTIDAD', 'CLAVE DISTRITO',
       'NOMBRE DISTRITO', 'CLAVE MUNICIPIO', 'MUNICIPIO', 'SECCION',
       'LISTA HOMBRES', 'LISTA MUJERES', 'LISTA NO BINARIO',
       'LISTA NOMINAL', 'LISTA_18_HOMBRES', 'LISTA_18_MUJERES',
       'LISTA_18_NOBINARIO', 'LISTA_19_HOMBRES', 'LISTA_19_MUJERES',
       'LISTA_19_NOBINARIO', 'LISTA_20_24_HOMBRES', 'LISTA_20_24_MUJERES',
       'LISTA_20_24_NOBINARIO', 'LISTA_25_29_HOMBRES', 'LISTA_25_29_MUJERES',
       'LISTA_25_29_NOBINARIO', 'LISTA_30_34_HOMBRES', 'LISTA_30_34_MUJERES',
       'LISTA_30_34_NOBINARIO', 'LISTA_35_39_HOMBRES', 'LISTA_35_39_MUJERES',
       'LISTA_35_39_NOBINARIO', 'LISTA_40_44_HOMBRES', 'LISTA_40_44_MUJERES',
       'LISTA_40_44_NOBINARIO', 'LISTA_45_49_HOMBRES', 'LISTA_45_49_MUJERES',
       'LISTA_45_49_NOBINARIO', 'LISTA_50_54_HOMBRES', 'LISTA_50_54_MUJERES',
       'LISTA_50_54_NOBINARIO', 'LISTA_55_59_HOMBRES', 'LISTA_55_59_MUJERES',
       'LISTA_55_59_NOBINARIO', 'LISTA_60_64_HOMBRES', 'LISTA_60_64_MUJERES',
       'LISTA_60_64_NOBINARIO', 'LISTA_65_Y_MAS_HOMBRES',
       'LISTA_65_Y_MAS_MUJERES', 'LISTA_65_Y_MAS_NOBINARIO']

df_ln_age_qroo.columns = ln_age_col_names

df_ln_age_qroo[['CLAVE ENTIDAD', 'NOMBRE ENTIDAD', 'NOMBRE DISTRITO']].astype(str)

df_ln_age_qroo.head()

# refactor into a function for later use on the dashboard

def create_age_choropleth(df, geojson):
    # Aggregate data by MUNICIPIO
    df_grouped = df.groupby('MUNICIPIO').sum().reset_index()

    # Determine the predominant age range for each municipality
    age_groups = df_grouped.columns[11:]

    df_grouped['Rango de Edad Predominante'] = df_grouped[age_groups].idxmax(axis=1)

    # when summing, pandas also concatenates the strings in "NOMBRE ENTIDAD"
    # so do some housekeeping
    df_grouped.drop(columns=['NOMBRE ENTIDAD'])

    # Assuming `geojson` is your GeoJSON object for the municipalities
    fig = px.choropleth(
        df_grouped,
        geojson=geojson,
        locations='MUNICIPIO',
        color='Rango de Edad Predominante',
        featureidkey="properties.NOMGEO",
        color_continuous_scale=px.colors.sequential.Plasma,
        projection="mercator",
        title="Predominant Gender and Age Range in Voter Registration"
    )

    fig.update_geos(fitbounds="locations", visible=False)

    return fig

create_age_choropleth(df_ln_age_qroo, geojson_data)

df_ln_sx_qroo.columns

# refactor into a function for later use on dashboard

def create_total_bar_plot(df):

    # group data

    df_ln_qroo_totals = df.groupby(['Nombre Municipio'])[['Lista Hombres', 'Lista Mujeres', 'Lista Nominal']].sum().reset_index()

    fig_bar_totals = px.bar(
    df_ln_qroo_totals,
    x='Nombre Municipio',
    y=['Lista Hombres','Lista Mujeres'],
    labels = {'value': 'Lista Nominal',
            'variable': ''},
    title="Registered Voters per Municipality",
    color_discrete_sequence=px.colors.qualitative.Dark24
    )

    # make a dictionary for abbreviated municipality names
    abb_mun_dict = {
        'BACALAR': 'BCL',
        'BENITO JUAREZ': 'BJ',
        'COZUMEL': 'CZ',
        'FELIPE CARRILLO PUERTO': 'FCP',
        'ISLA MUJERES': 'IM',
        'JOSE MARIA MORELOS': 'JMM',
        'LAZARO CARDENAS': 'LC',
        'OTHON P. BLANCO': 'OPB',
        'PUERTO MORELOS': 'PM',
        'SOLIDARIDAD': 'SLD',
        'TULUM': 'TLM'
    }

    fig_bar_totals.update_layout(
        xaxis = dict(
            tickvals = df_ln_qroo_totals['Nombre Municipio'],  # Original names
            ticktext = [abb_mun_dict.get(name, name) for name in  df_ln_qroo_totals['Nombre Municipio']]  # Abbreviated names
        ),
        yaxis = dict(title = 'Registered Voters'),
        plot_bgcolor = 'rgba(0,0,0,0)', # transparent background
        uniformtext_minsize = 8,  # ensure text size is legible
        uniformtext_mode = 'hide', # hide text if it doesn't fit
    )

    fig_bar_totals.update_traces(
        hoverinfo='x+y',  # Show the municipio name and the count on hover
        hovertemplate="<b>%{x}</b><br>Total: %{y}<extra></extra>"  # Custom hover template
    )

    return fig_bar_totals

create_total_bar_plot(df_ln_sx_qroo)

# refactor into a function for later use on dashboard

def create_total_choropleth(df, geojson):

    df_ln_qroo_totals = df.groupby(['Nombre Municipio'])[['Lista Hombres', 'Lista Mujeres', 'Lista Nominal']].sum().reset_index()

    fig_choropleth_totals = px.choropleth(df_ln_qroo_totals,
                                geojson=geojson,
                                locations='Nombre Municipio',
                                color='Lista Nominal',
                                featureidkey="properties.NOMGEO",  # Adjust based on your GeoJSON properties
                                projection="mercator",
                                color_continuous_scale="Portland",
                                title="Registered Voters per Municipality")
    fig_choropleth_totals.update_geos(fitbounds="locations", visible=False)

    fig_choropleth_totals.update_layout(
        coloraxis_colorbar = dict(
            title = 'Total Registered Voters',
            orientation= 'h',
            x = 0.5,
            xanchor = 'center',
            y = -0.2,
            thickness = 10,
            len = 0.65
            )
    )

    return fig_choropleth_totals

create_total_choropleth(df_ln_sx_qroo, geojson_data)

df_grouped = df_re_2021_qroo.groupby('MUNICIPIO').agg({
    'TOTAL_VOTOS': 'sum',
    'LISTA_NOMINAL': 'sum'
}).reset_index()

df_grouped['Porcentaje'] = df_grouped['TOTAL_VOTOS'] / df_grouped['LISTA_NOMINAL']

df_grouped

selected_year = 2015

def create_voter_turnout_proportion_choropleth(df_resultados, selected_year, geojson_data):
    # Aggregate data by MUNICIPIO if not already aggregated
    df_grouped = df_resultados.groupby('MUNICIPIO').agg({
    'TOTAL_VOTOS': 'sum',
    'LISTA_NOMINAL': 'sum'
    }).reset_index()

    df_grouped['Porcentaje Votantes'] = df_grouped['TOTAL_VOTOS'] / df_grouped['LISTA_NOMINAL'] * 100

    # Assuming `geojson` is your GeoJSON object for the municipalities
    fig = px.choropleth(
        df_grouped,
        geojson=geojson_data,
        locations='MUNICIPIO',
        color='Porcentaje Votantes',
        featureidkey="properties.NOMGEO",
        color_continuous_scale=px.colors.sequential.YlOrRd,
        projection="mercator",
        title=f"Total Voter Turnout in {selected_year}"
    )

    fig.update_geos(fitbounds="locations", visible=False)

    # Update layout for colorbar position
    fig.update_layout(
    coloraxis_colorbar=dict(
        title=(f'Voter Turnout Percentage in {selected_year}'),
        orientation='h',
        x=0.5,
        xanchor='center',
        y=-0.2,
        thickness=10,  # Adjust the thickness of the colorbar
        len=0.65       # Set the length as a fraction of the plot area width
        )
    )
    return fig

create_voter_turnout_proportion_choropleth(df_re_2018_qroo, selected_year, geojson_data)
